Torque conversion tables

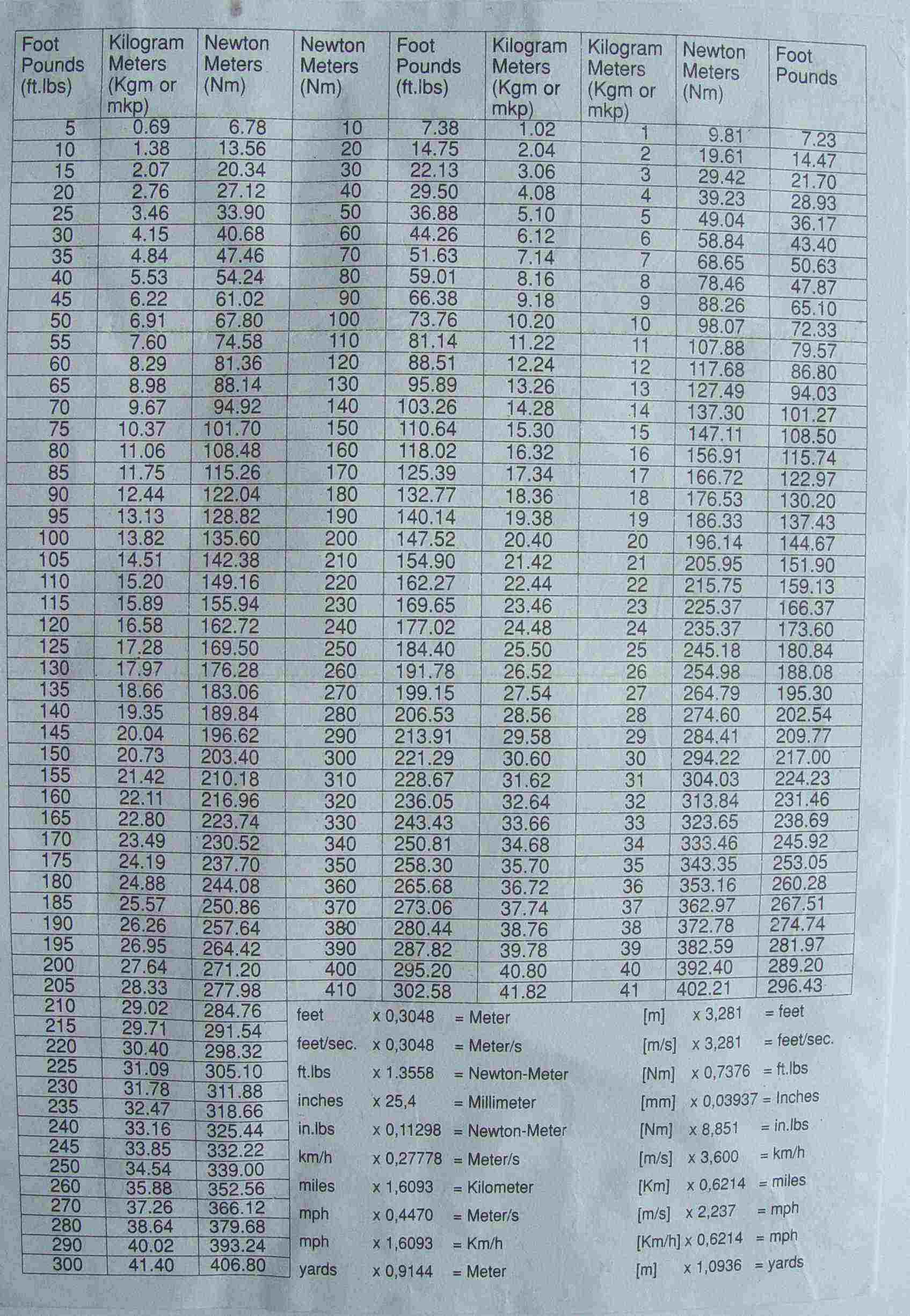

Conversion Table Metric to Imperial Measurement & Torque Settings.


Having recently purchased a new torque wrench I was disappointed to find that the scale is only calibrated in metric measurement. when torque settings I have made note of are in ft-lbs. I have acquired this conversion chart which I feel sure will be useful to other who do their own maintenance.













































List of torque settings,
If you can reliably add to to this list please forward details by e-mail and I will add them to the list for the benefit of all readers.


Axle nut ..................................................................170Nm
Bolt of steering coupling to steering shaft.......20Nm
Bolt of exhaust system to catalytic converter. 25Nm
Calliper Guide Bolts..................................................30Nm
Calliper Securing Bolts..........................................115Nm
Flexible Brake Hose to Calliper..............................18Nm
Metal Brake Pipe to Flexible hose.......................14Nm
Oil sump drain plug.................................................30Nm
Oil filter Plastic Casing.27mm.............................15Nm
Rear Shock Absorber lower securing bolt ......90Nm
Screw Ignition Coil Module...................................20Nm
Screw Bracket ignition Coil Module .....................8Nm
Starter cable to starter circuit ...........................6Nm
Trailing Arm Bolt ..................................................140Nm
Wheel securing bolts..........................................110Nm
